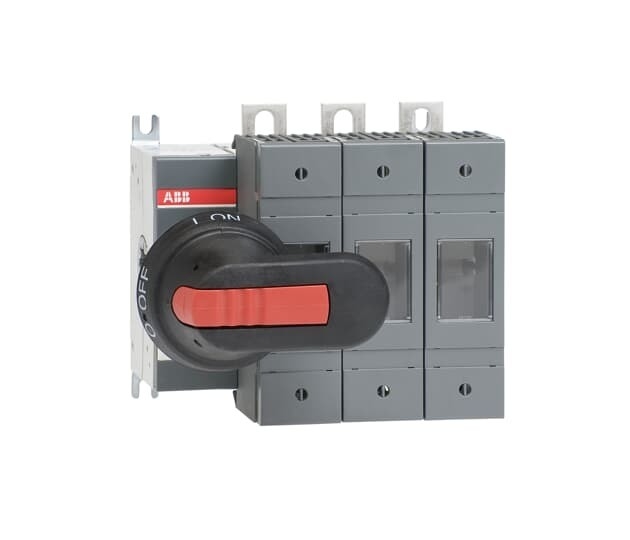

OS125GD03P 1SCA115639R1001 Disconnecting Switch for Industrial Power Management

OS125GD03P

General Information

• Extended Product Type:

  OS125GD03P

• Product ID:

  1SCA115639R1001

• EAN:

  6417019479774

• Catalog Description:

  OS125GD03P SWITCH FUSE

• Long Description:

  Switch Fuses,Front Operated,3-pole,03 (Left Side),DIN,000,00,Handle and shaft included,

• Circular Value

  • Conflict Minerals Reporting Template (CMRT):

    9AKK108467A5658

  • Environmental Product Declaration - EPD:

    1SCC311196D0201

  • REACH Declaration:

    1SCC011021D0201

  • RoHS Information:

    1SCC011020D0201

  • Toxic Substances Control Act - TSCA:

    1SCC011025D0201

  Eco Transparency

  • Environmental Product Declaration - EPD:

    1SCC311196D0201

  Ordering

  • Minimum Order Quantity:

    1 piece

  • Customs Tariff Number:

    85365080

  • Country of Origin:

    Finland (FI)

  Popular Downloads

  • Data Sheet, Technical Information:

    1SCC311013C0201

  • Instructions and Manuals:

    1SCC311037M0206

  • Environmental Product Declaration - EPD:

    1SCC311196D0201

  Dimensions

  • Product Net Width:

    147 mm

  • Product Net Height:

    140 mm

  • Product Net Depth / Length:

    130 mm

  • Product Net Weight:

    2.035 kg
    4.49 lb

  Technical

  • Rated Operational Current AC-21A (I_e):

    (500 V) 125 A
    (690 V) 125 A

  • Rated Operational Current AC-22A (I_e):

    (500 V) 125 A
    (690 V) 125 A

  • Rated Operational Current AC-23A (I_e):

    (500 V) 125 A
    (690 V) 125 A

  • Rated Operational Power AC-23A (P_e):

    (220 ... 240 V) 37 kW
    (400 V) 55 kW
    (415 V) 55 kW
    (500 V) 75 kW
    (690 V) 110 kW

  • Conventional Free-air Thermal Current (I_th):

    Θ = 40 °C 125 A

  • Conventional Thermal Current (I_the):

    Fully Enclosed 125 A

  • Rated Impulse Withstand Voltage (U_imp):

    8 kV

  • Rated Insulation Voltage (U_i):

    1000 V

  • Rated Operational Voltage:

    Main Circuit 690 V AC

  • Rated Short-time Withstand Current Low Voltage (I_cw):

    for 1 s 5 kiloampere rms

  • Rated Conditional Short-Circuit Current (I_nc):

    (690 V) 80 kA

  • Power Loss:

    at Rated Operating Conditions per Pole 12 W

  • Pollution Degree:

    3

  • Handle Type:

    Pistol handle and shaft included

  • Switches Operating Mechanism:

    03 (Left Side)

  • Position of Line Terminals:

    Top In - Bottom Out, Bottom In - Top Out

  • Fuse Size:

    NH000
    NH00

  • Fuse System:

    DIN

  • Operating Mode:

    Front Operated

  • Standards:

    IEC 60947-3

  • Mounting Type:

    Base mounting

  • Number of Poles:

    3

  • Cable Cross-Section:

    2.5 ... 25 mm²

  • Terminal Type:

    Lug terminals

  • Terminal Width:

    20 mm

  • Tightening Torque:

    15 ... 22 N·m

  • Rated Current (I_n):

    Main Circuit 125 A

  Technical UL/CSA

  • Tightening Torque:

    15 ... 22 N·m

  Environmental

  • RoHS Status:

    Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
