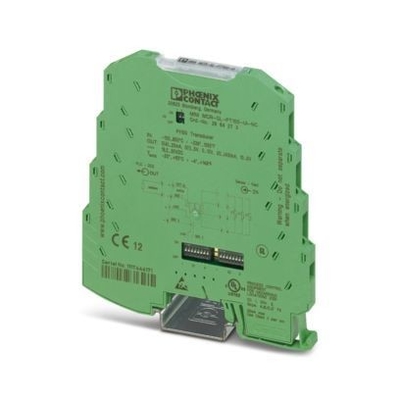

MINI MCR-SL-PT100-UI-NC The Ultimate Resistance Thermometer for Industrial Applications
Product Details:
| Place of Origin: | Germany |
| Brand Name: | / |
| Model Number: | MINI MCR-SL-PT100-UI-NC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
|
Detail Information |
|||
| Product Name: | MINI MCR-SL-PT100-UI-NC | ||
|---|---|---|---|
Product Description
Products Description
Order NO | 2864273 |
Model | MINI MCR-SL-PT100-UI-NC |
Stock | Available |
Quality | 100% Brand |
Condition | 100%Original and new |
Delivery time | 1- 50pcs ，3-7 days 51-100 pcs，7-10days |

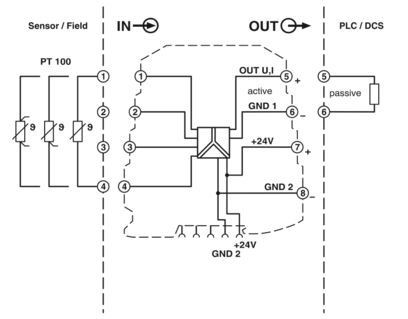

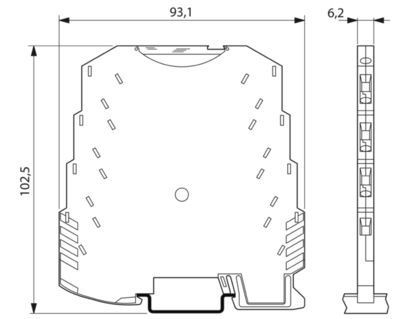

Product Details | The narrow, 6.2 mm wide MINI MCR-SL-PT100-UI... is a configurable, 3-way isolated temperature transducer. It is suitable for connecting Pt 100 resistance thermometers in accordance with IEC 60751 in 2-, 3-, and 4-conductor connection technology. Electrically isolated 0 ... 20 mA, 4 ... 20 mA, 0 ... 10 V, 0 ... 5 V, 1 ... 5 V, 10 ... 0 V, 20 ... 0 mA, or 20 ... 4 mA standard analog signals are available on the output side. The DIP switches, which can be accessed on the side of the housing, are used to configure the following parameters: - Connection technology - Temperature range to be measured - Output signal - Type of error evaluation Power (19.2 V DC to 30 V DC) can either be supplied via the connection terminal blocks of the modules or in conjunction with the DIN rail connector. |
