MINI MCR-SL-R-UI 2864095 The Ideal Resistance Transducer for Positioning Applications
Product Details:
| Place of Origin: | Germany |
| Brand Name: | / |
| Model Number: | MINI MCR-SL-R-UI |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiable |
|
Detail Information |
|||
| Product Name: | MINI MCR-SL-R-UI | ||
|---|---|---|---|
Product Description
Products Description
Order NO | 2864095 |
Model | MINI MCR-SL-R-UI |
Stock | Available |
Quality | 100% Brand |
Condition | 100%Original and new |
Delivery time | 1- 50pcs ，3-7 days 51-100 pcs，7-10days |

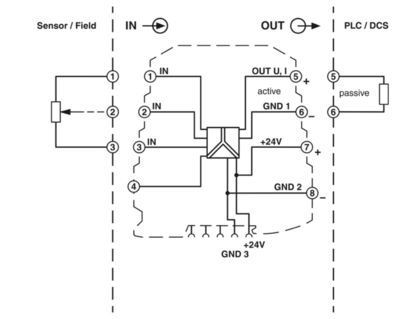

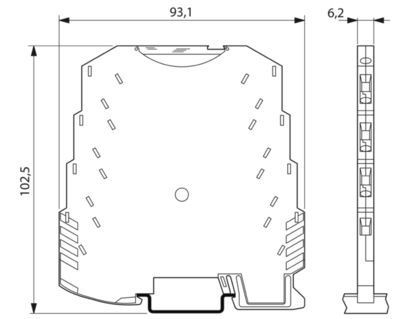

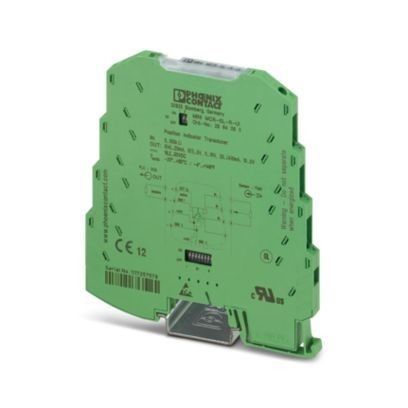

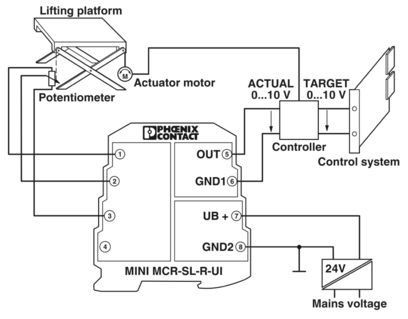

Product Details | The narrow 6.2 mm MINI MCR-SL-R-UI... potiposition transducer converts potentiometer positions into a standard analog signal on a percentage basis. If the potentiometer range cannot be utilized to the full, an externally accessible slide switch is used to set the upper and lower potentiometer final values. The output signal between 0% and 100% is based on this set final value. The DIP switches, which can be accessed on the side of the housing, are used to configure the following parameters: - Output signal - Automatic potentiometer detection - Wire-break detection slider - Type of error evaluation Power (19.2 V DC to 30 V DC) can either be supplied via the connection terminal blocks of the modules or in conjunction with the DIN rail connector. |
