Product Details:

Place of Origin: Germany
Brand Name: Hengesbach
Model Number: TP12/TW39BH90L060T460

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiable
Get Best Price Contact Now

Detail Information

Phase: Three Phase Type: TP12/TW39BH90L060T460
Display: TP12/TW39BH90L060T760

Product Description

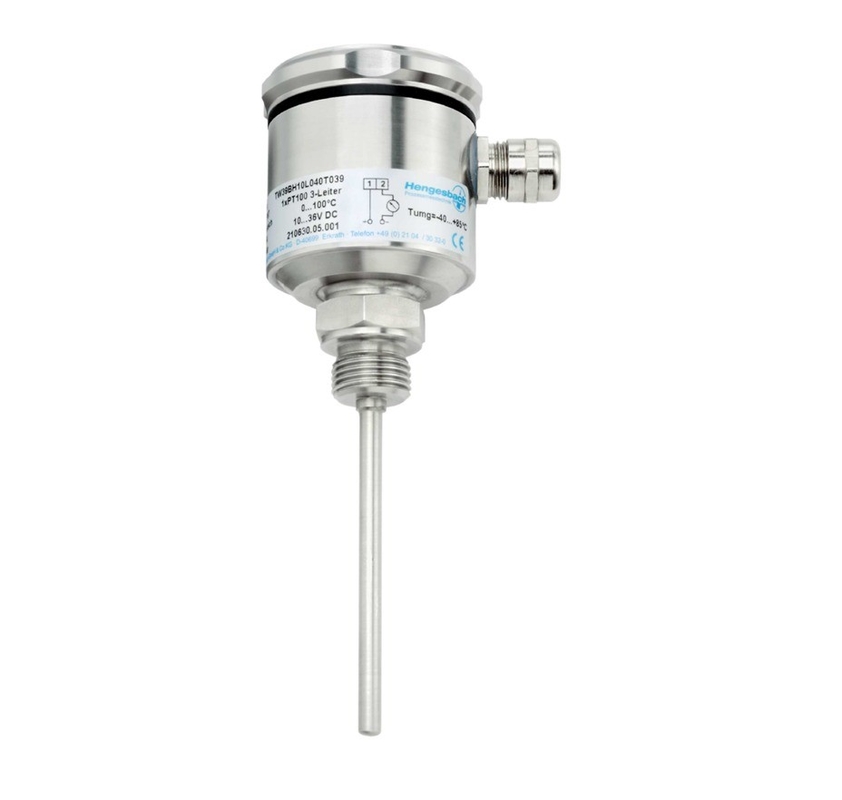

Screw-In Resistance Thermometer
- with G ½ B screw-in thread - Type TP 12 -

TP12/TW39BH90L060T460
TP12/TW39BH90L060T760

Features

  • "FR"- housing in IP 67
  • with single- or double- PT100
  • CIP-proofed installation with metallic sealing system
  • optional delivery with head transmitter
  • construction with G1/2 B - screw-in thread with replaceable measurement devices

Description

The screw-in resistance thermometers Type TP 12 with G ½ B – screw-in threads designed with or without transmitter are high-performance, robust and all-purpose devices for general applications without special hygienic requirements.



The temperature sensor is a PT100 Platinum resistor, standardly designed in accuracy class A according EN 60751. Accuracy classes B 1/2, 1/3, 1/10 DIN or class B are available optionally. The measurement inserts consist of replaceable single- or double-PT100 resistors. The application of the measurement inserts has to be adjusted to the needs for temperature, length, flexibility, vibration-proofness and measuring accuracy. E.g. for control processes and on request devices with tapered tips and extra short half-life-times are available.

Safety and profitability aspects advise constructions with protective tubes in case of a possibly necessary change of the probes, so that replacements can be carried out quickly and comfortably, without decommissioning the plant or draining the tanks. Furthermore the protectice tube guarantees the resistiveness against mechanical stress and chemical attacks. Also variants of protective tubes to be screwed-in or welded can be designed for a quick response time.



The construction in protection class IP67 guarantees reliability for closeness and long durability even under extreme operating conditions. On longer transmission paths analog or programmable transmitter can be used optionally.
